nic28 Kit for PICDEM 2 Plus

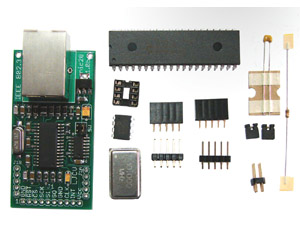

		nic28 nic28 Kit for PICDEM 2 Plus This kit includes all the parts necessary to implement the project published by Jorge Amodio to add an Ethernet network interface based on the ENC28J60 Ethernet controller to a Microchip PICDEM 2 Plus Development Board. The PIC18F4620 ships with Microchip's TCP/IP Protocol Stack preloaded. (Microchip PICDEM 2 Plus Development Board not included)	[Click Image to Enlarge]
			U$S 55.00/ea

Parts Included in the Kit

One nic28 Network Interface Card
One Microchip PIC18F4620-I/P Microcontroller
One Microchip 25LC256 Serial EEPROM
One full size 10MHZ TTL can oscillator
Two 0.1" 5 position female headers
Two 0.1" 5 position male headers
One 0.1" 2x2 jumper header with two jumper shunts
One 8 pin IC socket
One 10K 1/8W Resistor
One 100nF 50V Ceramic Capacitor

List price : U$S 55.00
Actual shipping charges apply
Texas residents 8.125% Sales Tax applies

Technical Documentation

nic28 Datasheet
Adding Ethernet to a PICDEM 2 Plus using the nic28 board (by Jorge Amodio)

Datasheets for relevant parts

Microchip's ENC28J60 Ethernet Controller Datasheet
Microchip's ENC28J60 Silicon Errata Rev.B1
Microchip's ENC28J60 Silicon Errata Rev.B4
Microchip's ENC28J60 Silicon Errata Rev.B5
Pulse Engineering J1006F01P 10/100BaseT Integrated magnetics RJ45 Jack

Useful Links

TCP/IP Stack Source code and useful software tools

Microchip's TCP/IP Stack v3.02
Microchip's TCP/IP Stack v3.60
Microchip's TCP/IP Stack v3.75
Microchip's TCP/IP Stack v4.02
Microchip's TCP/IP Latest Version
Microchip's MPLAB Integrated Development Environment
Microchip's MPLAB C18 Compiler
Wireshark (formerly Ethereal) Network Protocol Analyzer
CoffeCup HTML Editor 2007

Additional Resources

Brush Electronics Ethernet Boot Loader
Microchip TCP/IP Stack Application Note (AN833)
Microchip Users Forum - TCP/IP-Ethernet
