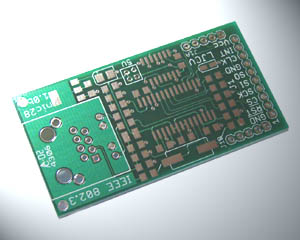

		nic28 PCB ENC28J60 Network Interface Card The nic28 is a small network interface card implemented with Microchip Technology new Stand-Alone ENC28J60 Ethernet Network Controller. The circuit board accommodates all required components for the ethernet controller, plus a 3.3V Voltage Regulator and 3-State Buffer for level conversion, and a RJ-45 jack with integrated magnetics and built-in Link and Activity LEDs for connection to an Ethernet Local Area Network.
			U$S 10.00/ea

Features On board 10Mbps Ethernet controller and RJ45 jack for network connection Small 1.3" by 2.5" circuit board footprint Conveniently fits on solderless prototype breadboards Selectable +5 or 3.3V DC supply On board voltage regulator and 3-State level conversion logic Supports latest Microchip's TCP/IP Protocol Stack Ethernet Boot Loader IEEE 802.3 10BaseT complaint Pricing List price : U$S 10.00 Actual shipping charges apply Texas residents 8.125% Sales Tax applies Technical Documentation nic28 PCB Datasheet (Includes board layout and BOM)   nic28 Datasheet   Datasheets for relevant parts Microchip's ENC28J60 Ethernet Controller Datasheet   Microchip's ENC28J60 Silicon Errata Rev.B1   Microchip's ENC28J60 Silicon Errata Rev.B4   Microchip's ENC28J60 Silicon Errata Rev.B5   Pulse Engineering J1006F01P 10/100BaseT Integrated magnetics RJ45 Jack   Useful Links TCP/IP Stack Source code and useful software tools Microchip's TCP/IP Stack (Original from Microchip)   Microchip's TCP/IP Stack v3.75 Modified   Additional Resources Brush Electronics Ethernet Boot Loader   Microchip TCP/IP Stack Application Note (AN833)   Adding Ethernet to a PICDEM 2 Plus using the nic28 board (by Jorge Amodio)   Microchip Users Forum - TCP/IP-Ethernet
