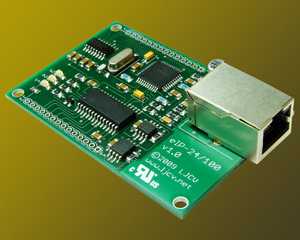

eIP-24/100
Embedded TCP/IP Network Module
The eIP-24/100 is a small network module implemented with Microchip's PIC24HJ128GP202 16-bit
Microcontroller and ENC424J600 new 10/100Mbps Ethernet Network Controller.
The circuit board includes all required components for both controllers, a serial 32Mbit
Serial Flash for storage of board configuration, HTML pages and graphic files,
a 23K256 Serial RAM, LEDs for health and board activity, and a RJ-45 jack for connection
to an Ethernet Local Area Network.
The board ships fully assembled and tested, and pre-programmed with a demo application
firmware based on Microchip's TCP/IP Stack.
|
|
[Click Image to Enlarge]
|
|
|
